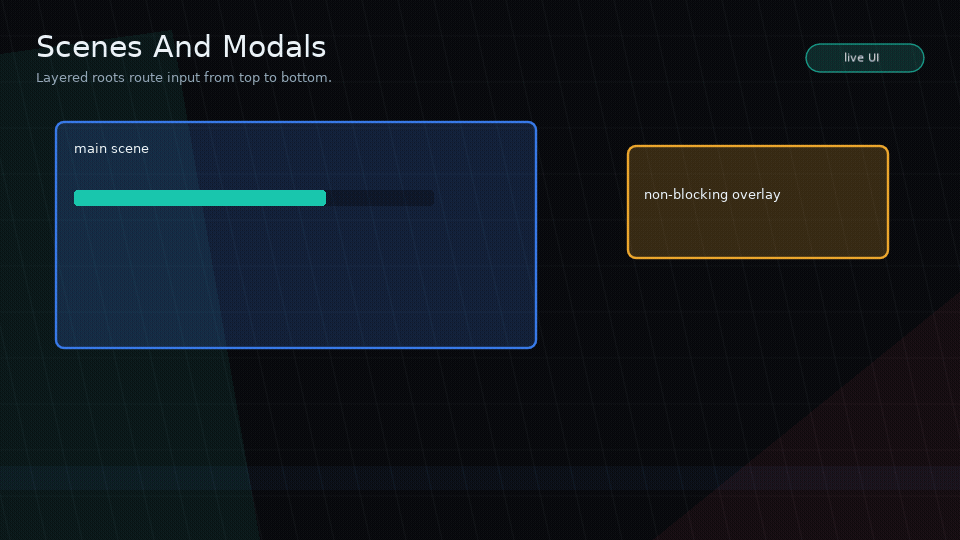

Scenes And Modals¶

Glyph provides a native scene/layer stack. Scenes, overlays, and modals use one stack model, one transition pipeline, one input router, and isolated hook scopes.

Scene API¶

ui.scene.set(id, component, opts)
ui.scene.push(id, component, opts)
ui.scene.pop(idOrNil)
ui.scene.close(id)
ui.scene.clear(predicateOrNil)
ui.scene.current()
ui.scene.isOpen(id)
ui.scene.layers()

Layer Options¶

Common options:

• kind = "scene" | "modal" | "overlay"
• blocking
• input
• backdrop
• backdropColor
• dismissOnBackdrop
• escapeToClose
• width, height
• align
• zIndex
• props
• transition
• duration
• exitDuration
• onEnter
• onExit
• onClose
• onUpdate
• onEvent

Main Scene¶

ui.scene.set("home", HomeScene, {
  transition = "none",
})

Overlay¶

ui.scene.push("debug", DebugOverlay, {
  kind = "overlay",
  blocking = false,
  input = false,
  transition = "fade",
})

Non-blocking overlays allow lower layers to keep receiving input.

Modal¶

ui.scene.push("pause", PauseMenu, {
  kind = "modal",
  width = 420,
  height = 260,
  dismissOnBackdrop = true,
  transition = ui.transitions.scale({ duration = 0.18 }),
})

Modal Convenience API¶

ui.modal.open("settings", SettingsModal, opts)
ui.modal.close("settings")
ui.modal.closeAll()
ui.modal.isOpen("settings")

ui.modal.open is a wrapper over ui.scene.push with kind = "modal".

Input Rules¶

• Layers route input top-down.
• Blocking layers stop input from reaching lower layers.
• Non-blocking overlays can pass input through.
• Backdrop clicks close a layer only when dismissOnBackdrop = true.
• Escape closes the top eligible layer unless escapeToClose = false.

Hook Isolation¶

Each scene layer has its own hook scope. useState inside a modal does not mutate state in the main scene or another modal.

Menori Scenes¶

ui.menori.new({ menori = menori }) adds optional Menori-aware scene helpers for 3D scene layers, loading overlays, crossfades, and interactive world-space billboards. Menori remains app-provided.

local adapter = ui.menori.new({ menori = menori, environment = environment })

adapter.scene.set("world", {
  scene = scene,
  root = rootNode,
  environment = environment,
  overlay = function()
    return ui.button({ label = "Pause" })
  end,
})

See Menori Adapter for the full adapter API.
